Few challenges are as persistent as the nagging uncertainty around a Project’s progress. Teams often find themselves working in the dark – unsure whether they’re on track, falling behind, or headed for a last-minute scramble to meet a deadline. That ambiguity can lead to missed deadlines, frustrated stakeholders, and team burnout. The question every project manager, Scrum Master, and team member needs to answer is a simple one: ‘Are we going to finish on time?’
Fortunately, there’s a simple, visual and powerful tool built to answer exactly that question – the burndown chart. It takes the potential chaos of a Project and turns it into a clear, predictable picture of progress, showing where the team stands and where they’re headed. It’s an essential tool for monitoring progress, making timely adjustments, and delivering results on schedule.
This guide covers the full anatomy of a burndown chart, how to read its different narratives, and the types used for both tactical and strategic planning. We’ll also walk through creating a chart, examine its limitations and pitfalls, and show how to take Project tracking from a manual chore to a source of automated intelligence with an integrated work management solution.
This post will cover:
What is a burndown chart?
A burndown chart is a simple tool that tracks a team’s work progress against the time remaining to complete that work. The diagram shows the ideal rate of effort needed to finish the work by a set date. Key benefits of using a burndown chart:
- Acts as an early warning system: The burndown chart is a powerful diagnostic tool that helps teams spot potential schedule setbacks well before they become critical. By comparing planned progress against actual progress, teams can identify deviations, investigate the root causes of delays, and take corrective action to get back on track.
- Enhances communication and alignment: With a clear, visual status report, the burndown chart acts as a single source of truth for the entire team and its stakeholders. It keeps everyone aligned on progress and expectations, reducing misunderstandings.
- Monitors scope creep: A well-maintained burndown chart makes scope creep – the addition of new work after a Project has started – highly visible. A sudden upward shift in the chart’s line signals that the total workload has grown, prompting a conversation about reprioritisation. A burndown chart is a way to manage Projects and teams more efficiently.
Using burndown charts in Agile and Scrum project management
While burndown charts are useful in any project management methodology, they’re a cornerstone of Agile frameworks, particularly Scrum. In the Agile world, work is typically carried out in short, time-boxed iterations called Sprints, which usually run from one to four weeks. The burndown chart is the primary tool the development team uses to track its daily progress towards the Sprint Goal.
In an Agile context, the true power of the burndown chart lies not in its role as a management report card, but as an empirical tool for the team itself. Agile and Scrum are grounded in empiricism – making decisions based on what is known and observed through experience. The burndown chart delivers this essential, observable data every single day. It presents a transparent comparison: ‘Here is the work we planned to do, and here is the work that is remaining.’
This daily feedback loop turns the chart from a passive reporting tool into an active driver of the problem-solving that defines high-performing Agile teams. An ‘ugly’ chart showing the team is behind schedule isn’t a sign of failure – it’s a critical data point that signals the need for action. It triggers the core Agile practice of "inspect and adapt." The team inspects the data ("Why are we behind?") and adapts its plan ("What can we do today to remove this blocker and get back on track?"). This daily conversation, sparked by the burndown chart, drives continuous improvement – making the chart a tool for the team, by the team.
Burndown chart breakdown
Understanding a project’s progress starts with reading the chart correctly. Every burndown chart – from the simplest to the most complex – is built on a few fundamental components that come together to tell a clear story.
The horizontal axis (x-axis)
The horizontal axis, or X-axis, shows the project or sprint timeline. It’s the fixed march of time against which all work is tracked. The timeline runs from Day 1 on the left through to the final day on the right. The unit of measurement varies depending on the chart’s scope:
For a Sprint burndown chart, the X-axis is almost always measured in days.
For a longer-term release or product burndown chart, the X-axis is typically measured in sprints or weeks.
The vertical axis (y-axis)
The vertical axis, or Y-axis, shows the total work remaining. The aim is to bring this down to zero by the end of the timeline. For this to be meaningful, work must be measured using a consistent unit of effort. The most common units are:
- Story points: An abstract unit of measure used by Agile teams to estimate the relative effort needed to complete a task. Story points are often preferred over hours because they factor in complexity, risk, and uncertainty – not just time spent.
- Hours: A more traditional measure that represents the estimated number of hours needed to complete the remaining tasks.
- Task count: The simplest measure – a raw count of the individual tasks, user stories, or other work items remaining.
The ideal effort line
The ideal effort line – often called the guideline – is a straight diagonal line running from the total estimated work on day one down to zero on the final day. It represents a perfectly linear rate of progress: the average daily pace the team would need to maintain to finish exactly on time.
In practice, progress is rarely perfectly linear – and that’s fine, because the ideal line isn’t meant to be a hard target. It’s a key benchmark: the reference point against which actual progress is measured, giving an at-a-glance view of whether the project is generally on track.
The actual effort line
This is the most important line on the chart – it tells the real story of the project. The actual effort line tracks exactly how much work remains at the end of each day or period, starting from the same point as the ideal line. From there, its path shifts based on real-world performance: bursts of productivity, unexpected blockers, and discoveries made mid-project. The relationship between this line and the ideal line is what reveals how the project is truly progressing.
Read a burndown chart
A burndown chart gives you a clear visual picture of where a project stands. At a glance, anyone reading the chart can see whether work is being completed on time or the team is falling behind the targets that were set.
A basic burndown chart is a line graph with two plotted lines. The x-axis shows the number of days needed to complete the work, and the y-axis shows the number of tasks remaining.
On-schedule burndown chart
- Chart description: The actual work line (orange) closely follows or ‘hugs’ the ideal work line (blue). It may shift slightly above or below, but broadly tracks the planned trajectory.
- Interpretation: This indicates a healthy, predictable project. The team is progressing at the expected rate, initial estimates are holding up, and no major blockers are getting in the way. The project is on track to meet its deadline.
- Recommended action: Keep the current approach going and stay alert to any new issues that may come up.
Behind schedule burndown chart
- Chart description: The actual work line sits consistently below the ideal work line.
- Interpretation: The team is completing work ahead of schedule. This positive outcome could be down to several factors: the tasks were less complex than initially estimated, the team is operating with exceptional efficiency, or a key member found an innovative solution that sped up progress.
- Recommended action: This is an opportunity worth acting on. Discuss whether the team can take on additional high-priority work from the backlog. This scenario also provides valuable data for improving the accuracy of future estimates.
Ahead of schedule burndown chart
- Chart description: The actual work line sits consistently above the ideal work line.
- Interpretation: The team is falling behind schedule. More work remains than anticipated — a clear warning sign that the project is at risk of missing its deadline.
- Recommended action: This situation needs immediate attention and an open conversation. The team should investigate the root cause of the delay. Are tasks proving more complex than first thought? Are external dependencies creating a bottleneck? Is a team member held up by a blocker? Identifying the cause is the first step towards corrective action.
Create a burndown chart
A burndown chart can be as simple or as detailed as you need. A basic chart plots work tasks, completion time, and work progress. Any extra information you add is optional.
Five steps to create a burndown chart
Creating and using an Agile burndown chart for a sprint takes just five steps:
- Work out your total number of tasks (breaking stories down into smaller steps can help).
- Assign a timeframe to each task.
- Work out the total sprint length.
- Use software to build the chart.
- Update the chart as work progresses.
Creating a burndown chart with Microsoft Excel
Creating a simple burndown chart in Microsoft Excel is straightforward. Start by naming and filling in three columns with the following information:
- Time: number of days in the sprint or actual calendar dates
- Planned task completion: number of story points or tasks to complete
- Actual task completion: number of remaining tasks to complete
The total number of tasks will vary from sprint to sprint, as will the number of tasks the team plans to complete each day.
Here’s an example of how the columns in Excel might look for a seven-day sprint with 10 tasks. To convert it to a line graph, select all the cells, then click Insert > Chart > Line.
This example shows the first day of the sprint. At the end of each day, update the ‘Actual task completion’ column with the number of tasks remaining — this reveals the trajectory of the orange line.

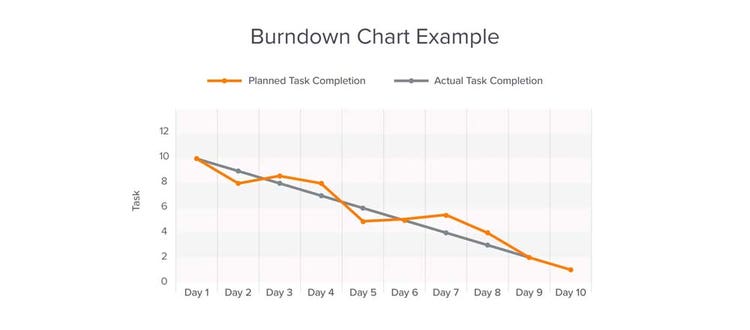

For example, on day two, one task was completed, leaving nine tasks remaining. Enter 9 in the actual task completion column for day two. At the end of the sprint, your chart may look like this:
As you can see, the ‘Actual task completion’ sometimes met the ‘Planned task completion’ goal, and sometimes it didn’t. Various work and life factors — such as task complexity or an unforeseen challenge — can affect your work progress.
Create burndown charts with Adobe Workfront
Workfront is a tool that lets you create burndown charts. Build tables and graphs, track trends, and manage sprints from a single, automated system that’s integrated with all the details of your work projects. A sprint burndown chart is a valuable way to track workflows and sprint progress in real time, but it’s just one of the many features you’ll find in a comprehensive Agile project management solution like Workfront.
Watch the overview video to find out how Workfront can transform your project management capabilities.
