Few challenges are as widespread as the persistent uncertainty surrounding a project’s progress. Teams frequently find themselves working without clear direction, unsure whether they are on track, falling behind, or heading for a last-minute rush to meet a deadline. This ambiguity can result in missed deadlines, stakeholder frustration, and team burnout. The question that every project manager, Scrum Master, and team member must answer is straightforward: ‘Are we going to finish on time?’
Fortunately, a straightforward yet powerful visual tool exists to answer precisely that question – the burndown chart. It converts the potential chaos of a project into a clear, predictable account of progress, showing where the team stands and where it is headed. It is an indispensable instrument for monitoring progress, making timely adjustments, and delivering results on schedule.
This guide examines the anatomy of a burndown chart, explains how to interpret its various narratives, and explores the different types used for both tactical and strategic planning. It also walks through the process of creating a chart, considers its limitations and pitfalls, and shows how to move project tracking from a manual task to a source of automated insight with an integrated work management solution.
This post will cover:
What is a burndown chart?
A burndown chart tracks a team’s work progress against the time remaining to complete it. The diagram illustrates the ideal rate of effort needed to achieve completion by a specified date. Key benefits of using a burndown chart:
- Acts as an early warning system: The burndown chart functions as an effective diagnostic tool, helping teams identify potential schedule setbacks well in advance. By comparing planned progress against actual progress, teams can spot deviations, investigate the root causes of delays, and put corrective measures in place to get back on track.
- Enhances communication and alignment: By providing a clear, visual status report, the burndown chart serves as a single source of truth for the entire team and its stakeholders. It keeps everyone informed about progress and expectations, fostering alignment and reducing misunderstandings.
- Monitors scope creep: A well-maintained burndown chart makes scope creep – the addition of new work after a project has started – highly visible. A sudden upward shift in the chart’s line indicates that the total workload has increased, signalling a need for discussion and reprioritisation. A burndown chart is a way to manage projects and teams more efficiently.
Using burndown charts in Agile and Scrum project management
Burndown charts are valuable in any project management methodology, but they are a cornerstone of Agile frameworks, particularly Scrum. In Agile, work is typically carried out in short, time-boxed iterations known as Sprints, which generally last between one and four weeks. The burndown chart is the primary tool used by the development team to monitor its daily progress towards the Sprint Goal.
In an Agile context, the true power of the burndown chart lies not in its function as a management report card, but as an empirical tool for the team itself. Agile and Scrum are built on the foundation of empiricism – making decisions based on what is known and observed through experience. The burndown chart provides this essential, observable data every single day, presenting a transparent comparison: 'Here is the work we planned to do, and here is the work that remains.'
This daily feedback loop transforms the chart from a passive reporting tool into an active catalyst for the problem-solving that defines high-performing Agile teams. An ‘ugly’ chart showing the team is behind schedule is not a sign of failure – it is a critical data point that highlights the need for action. It triggers the essential Agile practice of 'inspect and adapt.' The team inspects the data ('Why are we behind?') and adapts its plan ('What can we do today to remove this blocker and get back on track?'). This daily conversation, sparked by the burndown chart, is the engine of continuous improvement, making the chart a tool for the team, by the team.
Burndown chart breakdown
Understanding the language of the chart is the starting point for reading the story of a project’s progress. Every burndown chart – from the simplest to the most complex – is built from a few fundamental components that work together to create a compelling narrative.
Horizontal axis (x-axis)
The horizontal axis – or X-axis – represents the project or sprint timeline, forming the steady, unchangeable progression of time against which all work is measured. The timeline typically begins on the left with Day 1 of the project and proceeds to the final day on the right. The unit of measurement can vary depending on the chart’s scope:
For a Sprint burndown chart, the X-axis is almost always measured in days.
For a longer-term release or product burndown chart, the X-axis is often measured in sprints or weeks.
Vertical axis (y-axis)
The vertical axis – or Y-axis – represents the total amount of work remaining. The aim is to burn it down to zero by the end of the timeline. To be effective, this work must be quantified using a consistent unit of effort. The most common units are:
- Story points: An abstract unit of measure used by Agile teams to estimate the relative effort required to complete a piece of work. Story points are often preferred over hours because they account for complexity, risk, and uncertainty – not just time spent.
- Hours: A more traditional measure representing the estimated number of hours required to complete the remaining tasks.
- Task count: The simplest measure – a raw count of the individual tasks, user stories, or other work items remaining.
Ideal effort line
The ideal effort line – often referred to as the guideline – is a straight, diagonal line connecting the total estimated work on the first day to zero work on the final day. It represents a perfect, linear rate of progress – the average pace the team would need to maintain each day to finish exactly on time.
Real-world progress is rarely perfectly linear, and this line is not intended to be a rigid expectation. Rather, it functions as a crucial benchmark – the reference point against which the team’s actual progress is measured – providing an immediate visual indication of whether the project is broadly on track.
Actual effort line
The actual effort line is the most significant line on the chart – it reveals the true story of the project. At the end of each day or period, it plots the precise amount of work still remaining. It begins from the same starting point as the ideal line, but its path reflects the realities of delivery: bursts of productivity, unforeseen blockers, and discoveries made mid-project. The relationship between this line and the ideal line provides a detailed account of how the project is progressing.
How to read a burndown chart
A burndown chart serves as a visual record of project status. Anyone reading it can see at a glance whether work is being completed on schedule or whether the team is falling behind the goals originally set.
In its simplest form, a burndown chart is a line graph with two plotted lines. The x-axis represents the number of days allocated to complete the work, whilst the y-axis indicates the number of tasks to be completed.
On-schedule burndown chart
- Chart description: The actual work line (orange) closely follows, or ‘hugs’, the ideal work line (blue). It may fluctuate slightly above or below, but broadly tracks the planned trajectory.
- Interpretation: This reflects a well-managed, predictable project. The team is progressing at the expected pace, initial estimates are proving accurate, and no significant impediments are holding back progress. The project is on course to meet its deadline.
- Recommended action: The team should maintain its current approach whilst remaining alert to any new issues that may arise.
Behind schedule burndown chart
- Chart description: The actual work line sits consistently below the ideal work line.
- Interpretation: The team is completing work faster than planned – a positive development that may reflect several factors: the tasks were less complex than originally estimated, the team is working with exceptional efficiency, or a key member identified an innovative solution that accelerated progress.
- Recommended action: This presents a genuine opportunity. The team should discuss whether to take on additional high-priority work from the backlog. It also provides valuable data for improving the accuracy of future estimates.
Ahead of schedule burndown chart
- Chart description: The actual work line sits consistently above the ideal work line.
- Interpretation: The team is falling behind the planned schedule. More work remains than anticipated at this stage – a clear warning sign that the project is at risk of missing its deadline.
- Recommended action: This situation requires prompt attention and open discussion. The team must investigate the root cause of the delay. Are tasks proving more complex than first thought? Are external dependencies creating a bottleneck? Is a team member dealing with a blocker? Identifying the cause is the essential first step towards corrective action.
How to create a burndown chart
A burndown chart can be as straightforward or as detailed as required. At its most basic, it plots work tasks, completion time, and overall progress. Any additional information can be included as needed.
Five steps to create a burndown chart
It takes just five steps to create and use an Agile burndown chart for a sprint:
- Determine your total number of tasks (for example, by breaking stories down into smaller steps).
- Assign a time frame to each task.
- Determine total sprint length.
- Use software to create the chart.
- Update the chart as work progresses.
Creating a burndown chart with Microsoft Excel
Creating a simple burndown chart in Microsoft Excel is straightforward. Begin by naming three columns and entering the following information:
- Time: number of days in the sprint or actual calendar dates
- Planned task completion: number of story points or tasks to complete
- Actual task completion: number of remaining tasks to complete
The total number of tasks varies with each sprint, as does the number the team plans to complete on any given day.
Below is an example of how the columns in Excel might look for a seven-day sprint with 10 tasks. To convert it to a line graph, select all the cells and click Insert > Chart > Line.
This example shows the first day of the sprint. At the close of each day, update the ‘Actual task completion’ column with the number of tasks remaining – this will reveal the trajectory of the orange line.

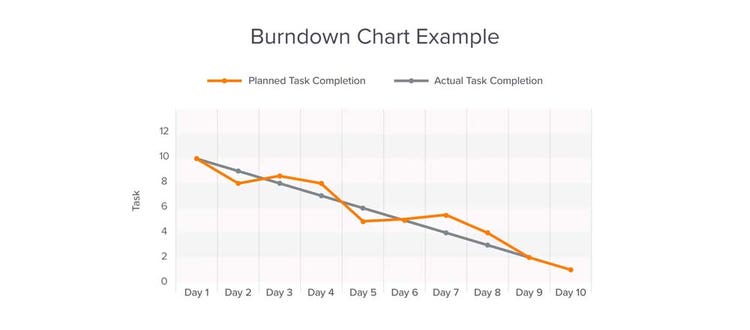

For instance, on day two, one task was completed, leaving nine outstanding. Enter 9 in the actual task completion column for day two. At the end of the sprint, your chart may resemble the one below:
As shown, the ‘Actual task completion’ line sometimes aligned with the ‘Planned task completion’ goal, and at other times fell short. A range of factors – from task complexity to unforeseen challenges – can affect your team’s work progress.
Create burndown charts with Adobe Workfront
Workfront is a dedicated tool for creating burndown charts. From a single, automated system integrated with every detail of your work projects, you can build tables and graphs, track trends, and manage sprints. A sprint burndown chart is invaluable for tracking workflows and sprint progress in real time – yet it is just one of the many helpful features available within a comprehensive Agile project management solution like Workfront.
Watch the overview video to find out more about how Workfront can transform your project management capabilities.
